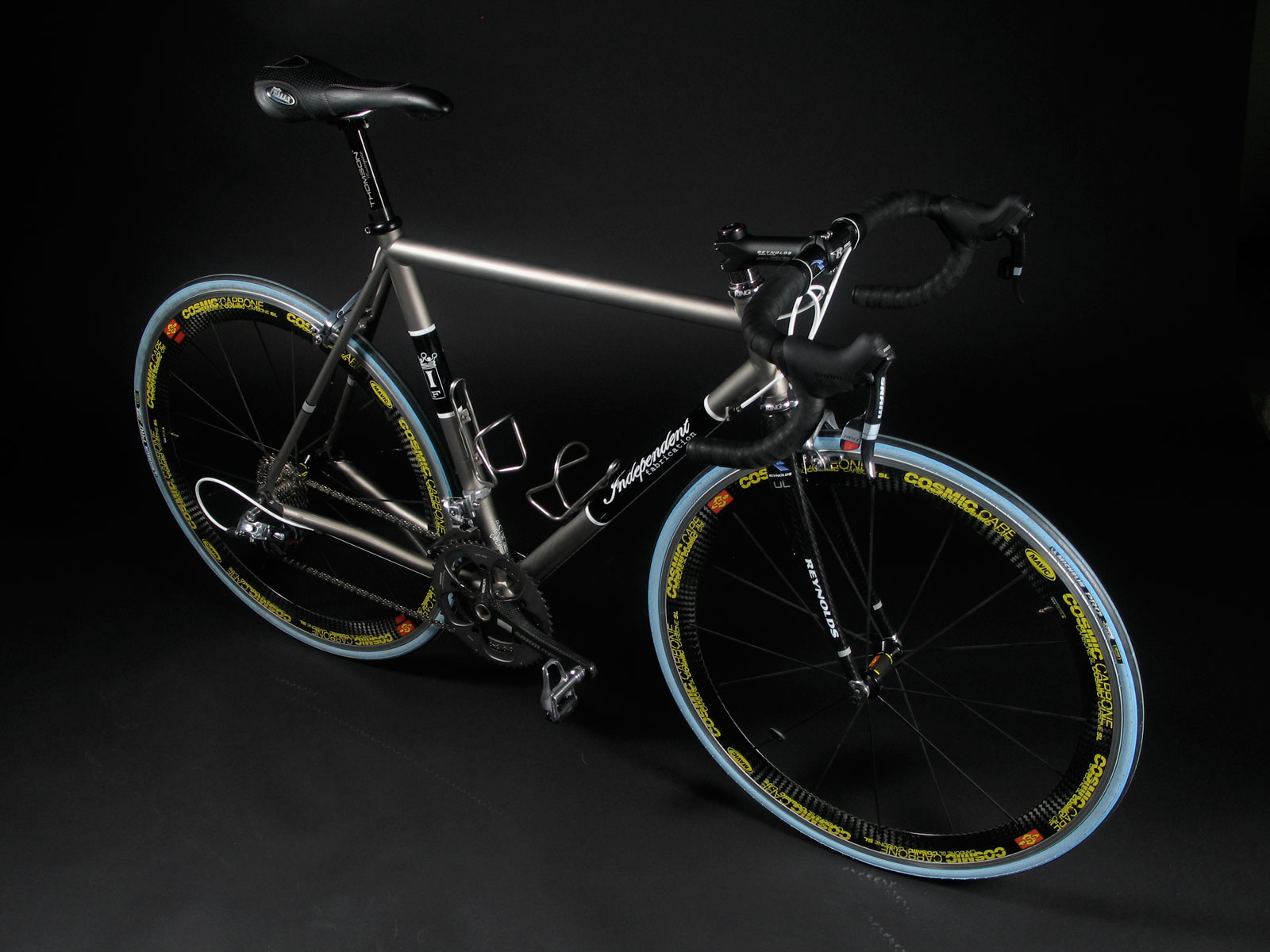

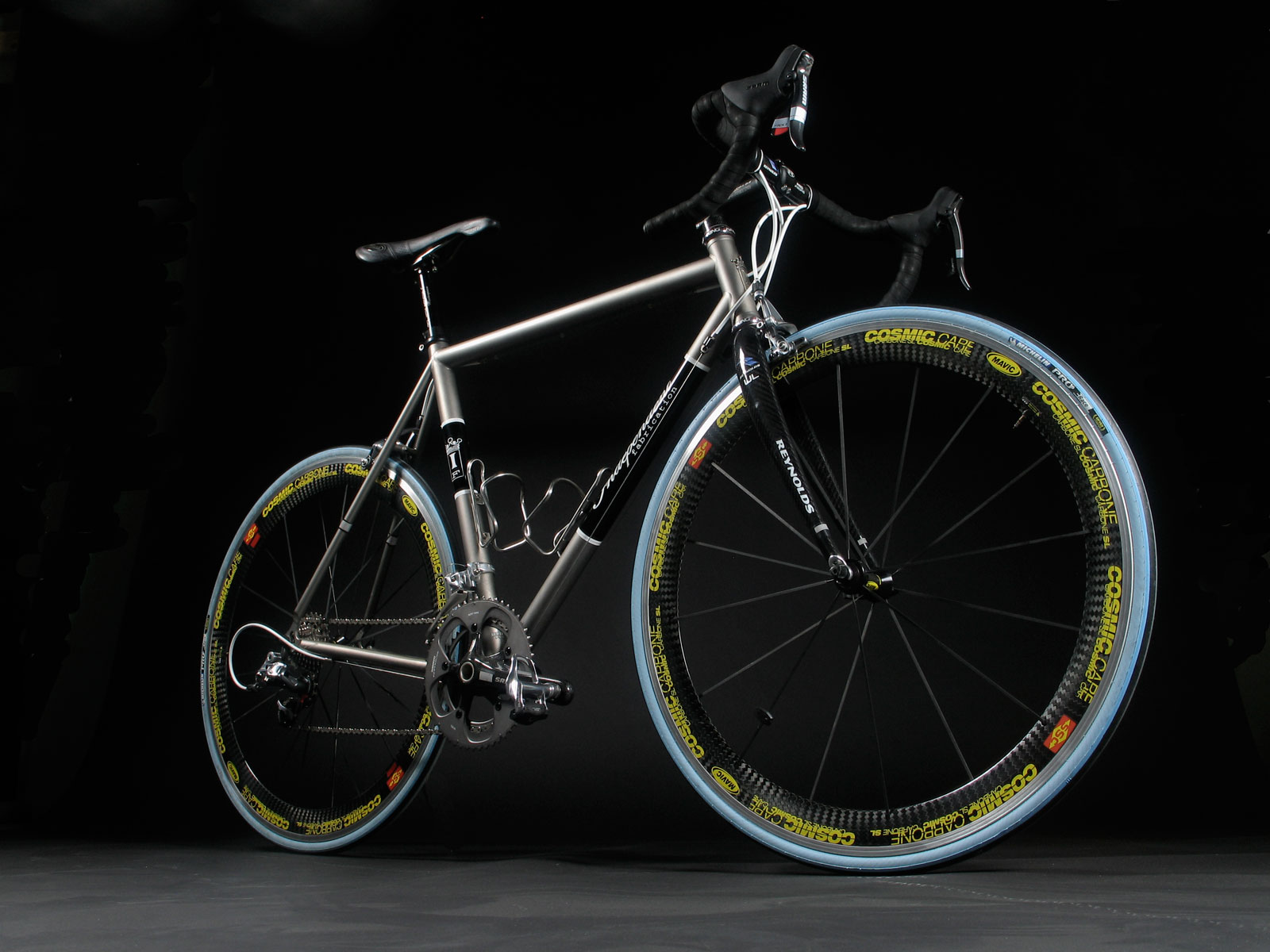

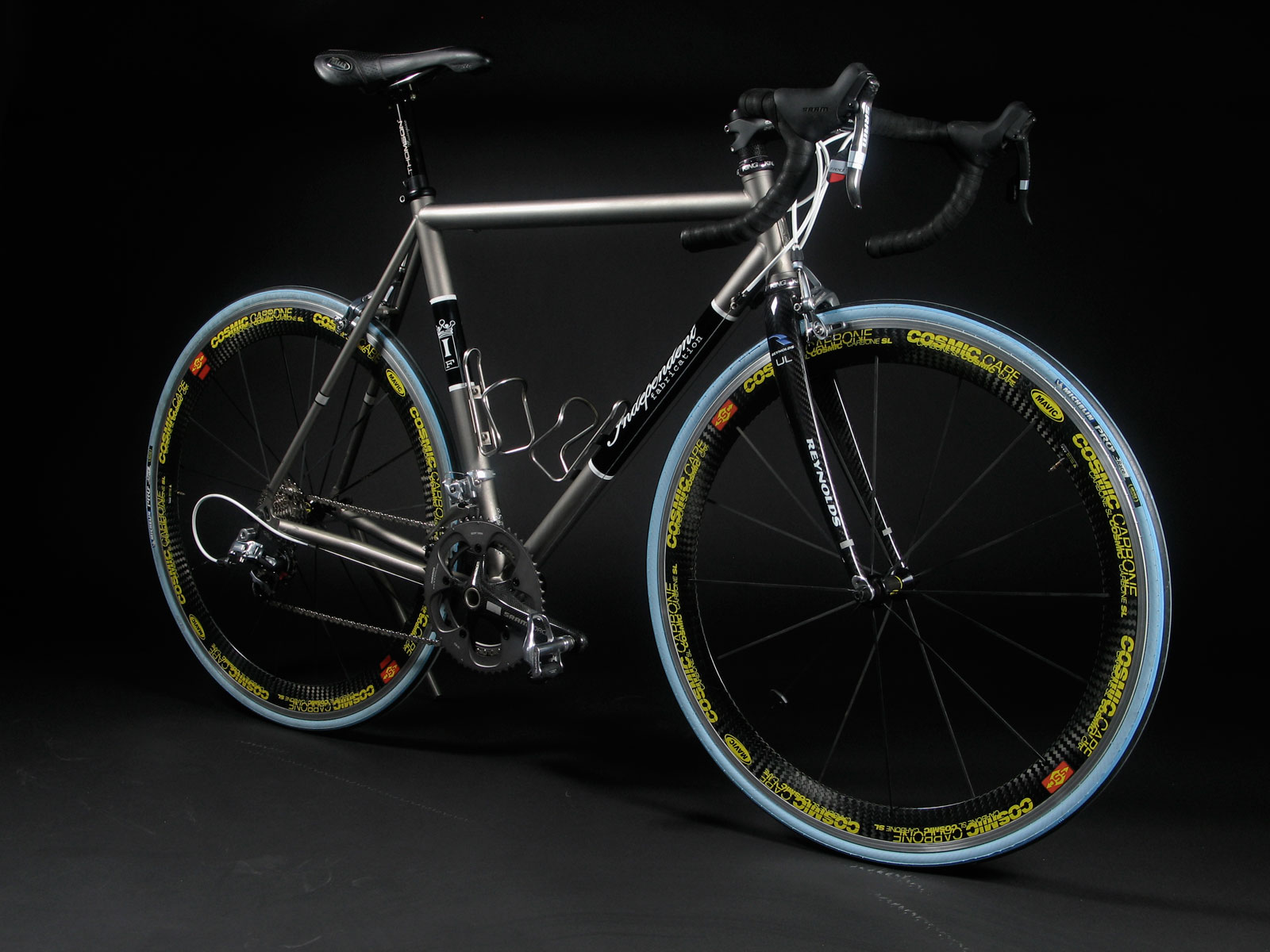

Independent Fabrication Ti Crown Jewel -
Finally, Matt owns a custom bike. The Ti Crown Jewel was designed to be Matt’s go-to long distance machine. I.F.’s Matt Bracken helped Matt create a bike with a geometry that would be comfortable for the long haul but with the snappiness and weight of a race worthy road bike. The shot-peened 3/2.5 titanium frame is custom painted with black panels and hand-painted Independent Fabrication logos and finished off with Reynold’s UL fork and a Chris King platinum headset. After the first few pedal strokes Matt could tell that this bike was like none other he had ever ridden. It is the most comfortable, most effortless bike he has ever owned.
| Frame | Independent Fabrication Ti Crown Jewel |
| Fork | Reynolds UL (43mm rake) |
| Critical measurements | |
| Rider's height | 5' 10" |
| Rider's weight | 160lbs |
| Seat tube length, c-c | 430mm |
| Seat tube length, c-t | n/a |
| Top tube length | 555mm (horizontal) |
| Saddle height, from BB (c-t) | 707mm |
| Saddle nose tip to C of bars | 532mm |
| C of front hub to top of bars | 546mm |
| Bottom bracket | SRAM RED |
| Cranks | SRAM Force with RED 39/53 Chainrings, 172.5mm |
| Chain | SRAM PC1090R |
| Front derailleur | SRAM RED |
| Rear derailleur | SRAM RED |
| Front brake | SRAM RED |
| Rear brake | SRAM RED |
| Brake levers | SRAM RED |
| Shift levers | SRAM RED |
| Rear sprockets | SRAM RED 11-26t |
| Wheelset | Mavic Cosmic Carbone Clincher |
| Tires | Michelin Pro Race 2 700x23 |
| Tubes | Michelin Aircomp Latex |

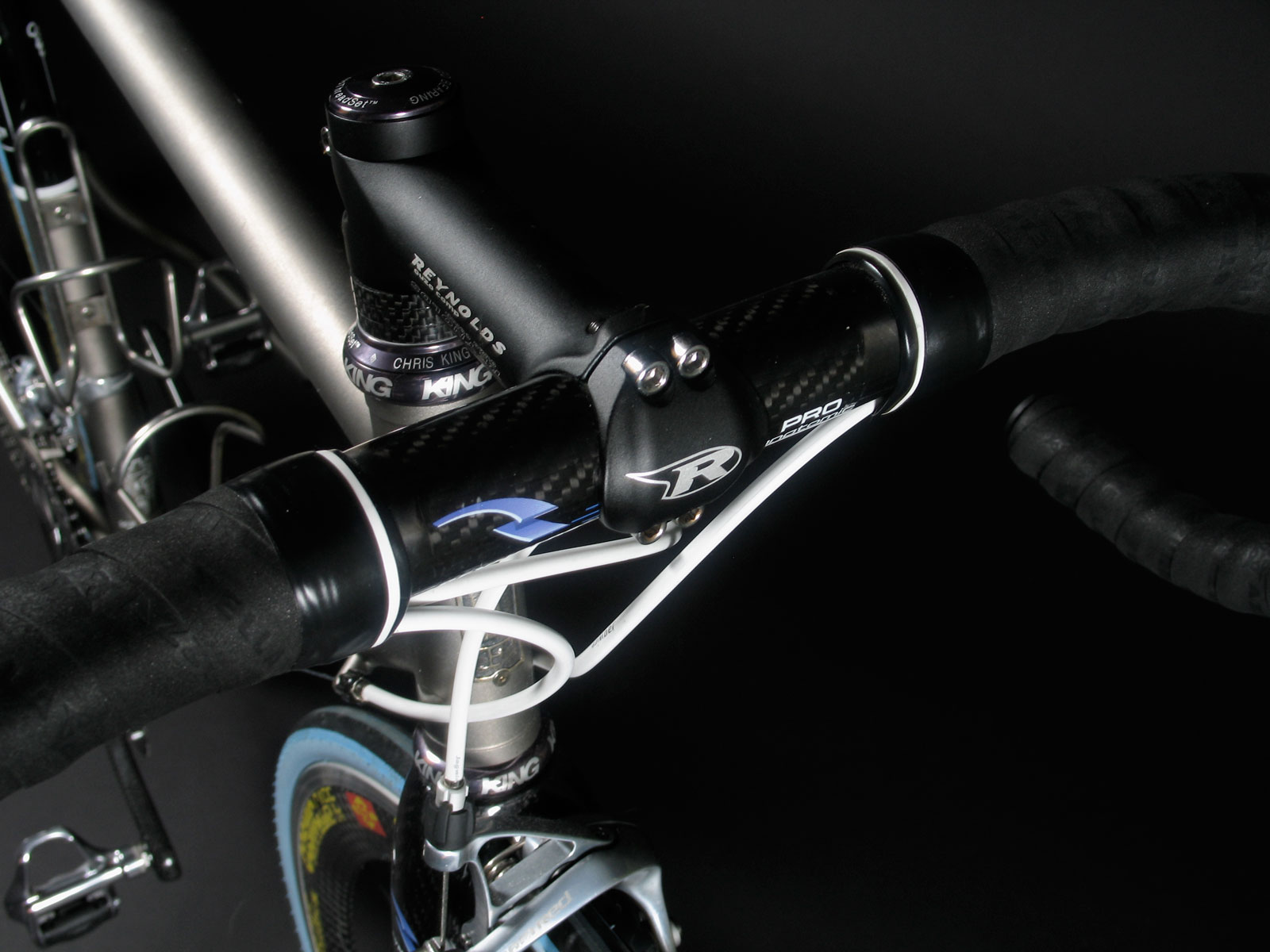

| Bars | Reynolds Ouzo Pro Anatomic Handlebar - 44cm |
| Stem | Reynolds Ouza Race, 110mm x -6° |
| Headset | Chris King NoThreadset Platinum |
| Tape/grip | Stella Azzurra |
| Pedals | Shimano Dura-Ace PD-7810 |
| Seat post | Thomson Masterpiece |
| Saddle | Selle Italia Classic Flite Gel |
| Bottle cages | Andrews King Titanium |
| Other accessories | computer - Custom IF Cateye Wireless Strada |
| Total bike weight | 7.2kg (15.9lb) |
